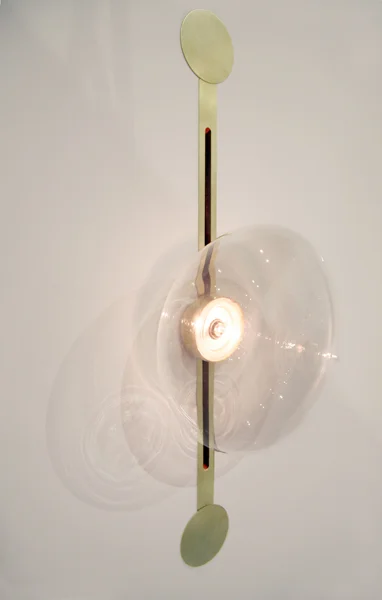

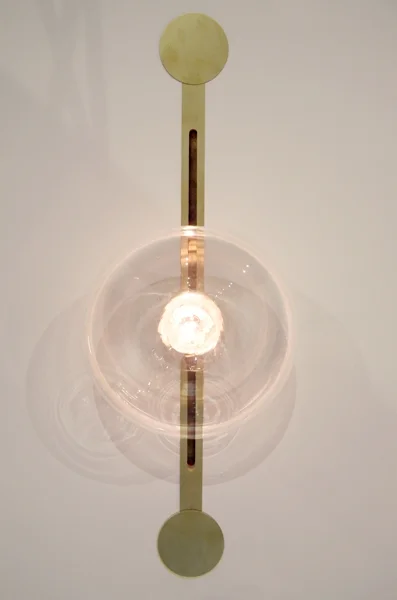

REFRACTION LAMP

This lamp is based on findings from Experiment. I wanted to create a wall lamp that gave a different type of light than that seen in traditional lamps, making the light more interesting by emulating light refraction by water. This makes the emitted light more interesting than the lamp itself, causing the emitted light to provide a larger decorative effect in a room than the physical lamp itself.

The lamp consists of a light source built into the wall which illuminates a metal plate that functions as a mirror. The metal plate is bent in such a way that it creates a pattern of reflection reminiscent of the refraction of light passing through water. The metal plate is attached to the light source but can be rotate 360 degrees. To give the lamp a more sophisticated appearance the metal is polished to chrome plated.

Materials: polished stainless steel.
Dimensions: 3,7 x 3,7 inc
Light source: LED 3W 12V 110V / 220v

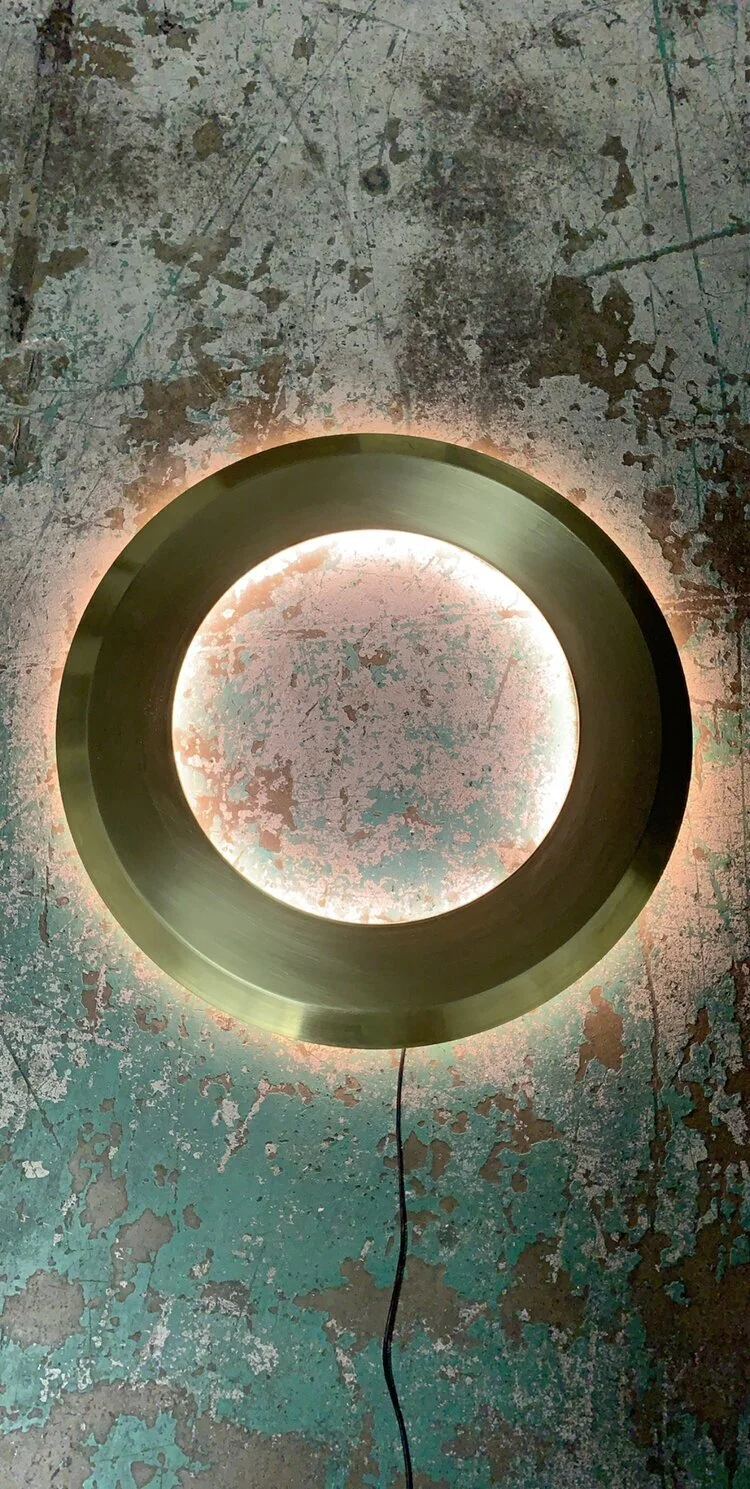

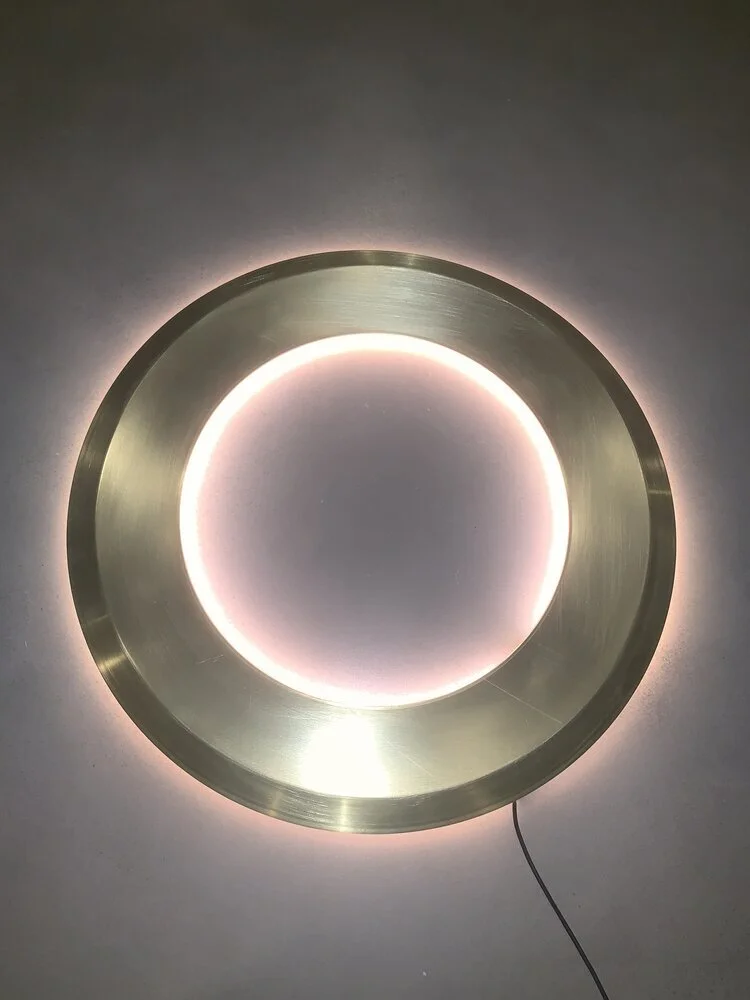

HALO WALL LED

BRASS

SKU
HW.16.B.B Halo Wall Brass 16”
HW.32.B.B Halo Wall Brass 32”
HW.47.B.B Halo Wall Brass 47”

Dimension
Ø16”,Ø32” & Ø47” / Ø40cm, Ø80cm & Ø120cm

Materials
Brass.

Finishes
Brushed and clear varnish.

Dimming
SD version: wall switch dim, 10-100% at 120V input.

Light source
Ø16, LED 14,4W 1200 lumen

Power
110V - 220V

Details
Lead time is 4 - 6 weeks
UL and CE

See spec sheet and installation instruction for more details

Spec sheet
Installation Instruction

SELECT OPTION

GRAPHITE BRASS

SKU
HW.16.B.G Halo Wall Brass 16” Graphite
HW.32.B.G Halo Wall Brass 32” Graphite
HW.47.B.G Halo Wall Brass 47” Graphite

Dimension
Ø16”,Ø32” & Ø47” / Ø40cm, Ø80cm & Ø120cm

Materials
Brass.

Finishes
Brushed, Graphite patina.

Dimming
SD version: wall switch dim, 10-100% at 120V input.

Light source
Ø16, LED 14,4W 1200 lumen

Power
110V - 220V

Details
Lead time is 4 - 6 weeks
UL and CE

See spec sheet and installation instruction for more details

Spec sheet
Installation Instruction

SELECT OPTION

GRAPHITE WASHED BRASS

SKU
HW.16.B.GW Halo Wall Brass 16” Graphite Wash
HW.32.B.GW Halo Wall Brass 32” Graphite Wash
HW.47.B.GW Halo Wall Brass 47” Graphite Wash

Dimension
Ø16”,Ø32” & Ø47” / Ø40cm, Ø80cm & Ø120cm

Materials
Brass.

Finishes
Brushed and washed with Graphite patina.

Dimming
SD version: wall switch dim, 10-100% at 120V input.

Light source
Ø16, LED 14,4W 1200 lumen

Power
110V - 220V

Details
Lead time is 4 - 6 weeks
UL and CE

See spec sheet and installation instruction for more details

Spec sheet
Installation Instruction

SELECT OPTION

HALO

ASH

SKU
HALO.A.RD Halo, ash, dims on rotation
HALO.A.SD Halo, ash, wall switch dim

Dimension
Ø15,7” x 43” x 6” / Ø40cm x 109cm x 15cm

Materials
solid ash wood, sand grey leather

Finishes
dead flat clear varnish

Dimming
SD version: wall switch dim, 10-100% at 120V input
RD version: dimmer is integrated into the lamp it self, dims on rotation (see video)

Light source
SD version: LED 12,4W 1000 lumen
RD version: LED 12W 1000 lumen
2700K, RA 90+
3000K available

Power
110V - 220V

Details
Lead time is 6 - 8 weeks
CE
UL listed available

Downloads
Spec sheet
Installation Instruction

Learn more

Add to cart

BRASS

SKU
HALO.B.RD Halo, brass, dims on rotation
HALO.B.SD Halo, brass, wall switch dim

Dimension
Ø15,7” x 43” x 6” / Ø40cm x 109cm x 15cm

Materials
brass, leather

Finishes
clear varnish, patina or painted

Dimming
SD version: wall switch dim, 10-100% at 120V input.
RD version: dimmer is integrated into the lamp it self, dims on rotation (see video)

Light source
SD version: LED 12,4W 1000 lumen
RD version: LED 12W 1000 lumen
2700K, RA 90+
3000K available

Power
110V - 220V

Details
Lead time is 6 - 8 weeks
CE
UL listed available

Downloads
Spec sheet
Installation Instruction

Learn more

WALNUT

SKU
HALO.W.RD Halo, walnut, dims on rotation
HALO.W.SD Halo, walnut, wall switch dim

Dimension
Ø15,7” x 43” x 6” / Ø40cm x 109cm x 15cm

Materials
solid wood, walnut, dark brown leather

Finishes
Oil

Dimming
SD version: wall switch dim, 10-100% at 120V input.
RD version: dimmer is integrated into the lamp itself, dims on rotation (see video)

Light source
SD version: LED 12,4W 1000 lumen
RD version: LED 12W 1000 lumen
2700K, RA 90+
3000K available

Power
110V - 220V

Details
Lead time is 6 - 8weeks
CE
UL listed available

Downloads
Spec sheet
Installation Instruction

Learn more

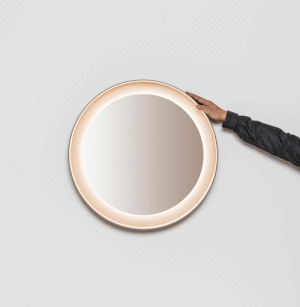

HALO MIRROR LED

WALNUT

SKU
HM.26.W.RD Halo Mirror 26, walnut, dims on rotation
HM.26.W.SD Halo Mirror 26, walnut, wall stitch dim
HM.34.W.RD Halo Mirror 34, walnut, dims on rotation
HM.34.W.SD Halo Mirror 34, walnut, wall switch dim

Dimension
Ø26” & Ø34” / Ø66cm & Ø86cm

Materials
veneer in walnut, glass.

Finishes
Oil, clear varnish or painted.

Dimming
SD version: wall switch dim, 10-100% at 120V input.
RD version: dimmer is integrated into the lamp it self, dims on rotation. (see video)

Light source
Ø26 LED 28W 2640 lumen 2700-3000K RA 90+
Ø34 LED 37/46W 3400 lumen 2700-3000K RA 90+

Power
110V - 220V

Details
Lead time is 4 - 6 weeks
UL and CE

See spec sheet and installation instruction for more details

Spec sheet
Installation Instruction

SELECT OPTION

OAK

SKU
HM.26.O.RD Halo Mirror 26, oak, dims on rotation
HM.26.O.SD Halo Mirror 26, oak, wall stitch dim
HM.34.O.RD Halo Mirror 34, oak, dims on rotation
HM.34.O.SD Halo Mirror 34, oak, wall switch dim

Dimension
Ø26” & Ø34” / Ø66cm & Ø86cm

Materials
veneer in oak, glass.

Finishes
Oil, clear varnish or painted.

Dimming
SD version: wall switch dim, 10-100% at 120V input.
RD version: dimmer is integrated into the lamp it self, dims on rotation. (see video)

Light source
Ø26 LED 28W 2640 lumen 2700-3000K RA 90+
Ø34 LED 37/46W 3400 lumen 2700-3000K RA 90+

Power
110V - 220V

Details
Lead time is 4 - 6 weeks
UL and CE

See spec sheet and installation instruction for more details

Spec sheet
Installation Instruction

SELECT OPTION

ASH

SKU
HM.26.A.RD Halo Mirror 26, ash, dims on rotation
HM.26.A.SD Halo Mirror 26, ash, wall stitch dim
HM.34.A.RD Halo Mirror 34, ash, dims on rotation
HM.34.A.SD Halo Mirror 34, ash, wall switch dim

Dimension
Ø26” & Ø34” / Ø66cm & Ø86cm

Materials
veneer in ash, glass.

Finishes
Oil, clear varnish or painted.

Dimming
SD version: wall switch dim, 10-100% at 120V input.
RD version: dimmer is integrated into the lamp it self, dims on rotation. (see video)

Light source
Ø26 LED 28W 2640 lumen 2700-3000K RA 90+
Ø34 LED 37/46W 3400 lumen 2700-3000K RA 90+

Power
110V - 220V

Details
Lead time is 4 - 6 weeks
UL and CE

See spec sheet and installation instruction for more details

Spec sheet
Installation Instruction

SELECT OPTION

PUCK

PUCK Collection

Introducing the new PUCK Collection, for wall floor and ceiling lamp. The PUCK has a variety of usefulness with a touch dim feature and is available in wood, aluminum and bronze with different finishes and variations.

BALANCE

Introducing the new BALANCE suspension lamp which has many looks depending on the size of it and the space that it is in. The design of this lamp gives the user control over how he wants the final look to become by choosing how the lamp is set up and adjusting it’s balance. Once the lamp is set up the user can still balance it/change it by pulling one light down while an other goes up, changing the appearance of the lamp as well as the amount and direction of the light. The further up, the light is more spread out and the further down the user gets more direct strong light on a certain spot.

Available as UL certified
CE

Materials: bronze or aluminum.
Dimensions: each pendant is 100mm x 60mm
Light source: LED 3W 350ma 110V / 220v (each pendant)

Sunrise / sunset
Made 2013/14

in CONSTRUCTIONIST. new version COMING soon.

FORESTER COLLECTION

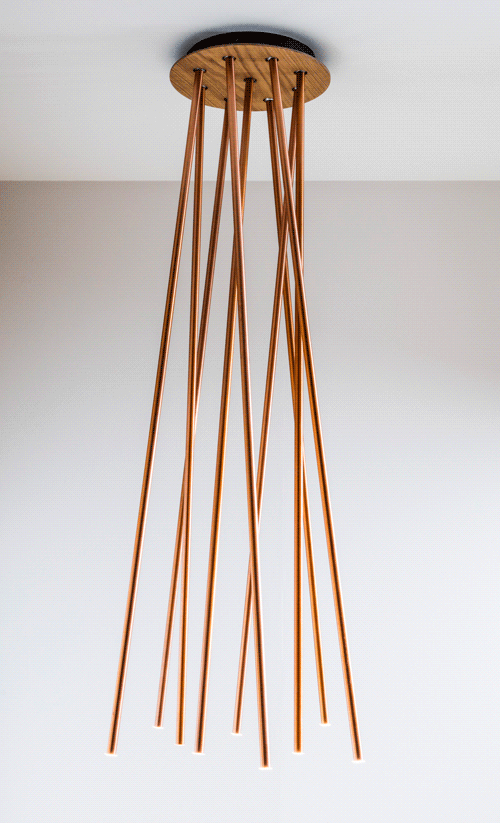

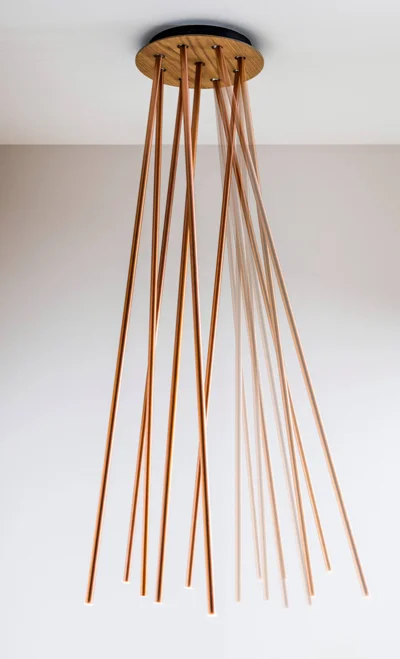

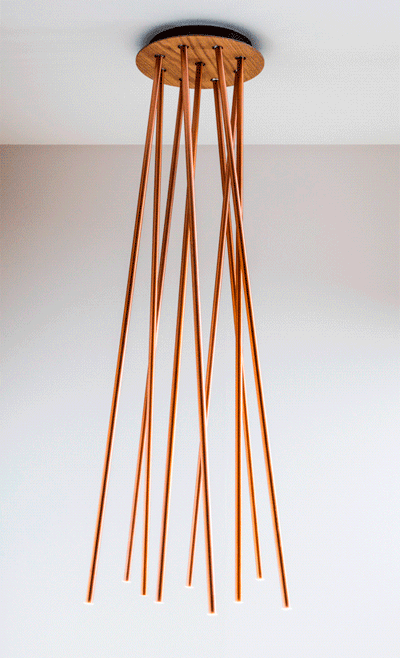

The inspiration for Forester come from a group of trees or a forest. The lamp is composed from pipes attached to a base. The pipes are attached to the base with ball bearings mounted on the plate. This is done to further enhance the usability of the lamp by allowing the user to simply move the pipes in all directions to suit changing needs for illumination.

PRODUCT:
Forester 7, (7 x 1w 350mA LED)
Forester 9, (9 X 1W 350MA LED)
Forester 10, (10 X 1W 350MA LED)
Other sizes are available up on request.

DIMENSIONS:
Forester 7: base Ø 8 inch, pipe length can be from 8 inch to 100 inch.
forester 9: BASE Ø 9 inch, pipe length can be from 8 inch to 100 inch.
Forester 10: BASE 16 x 6 inch, pipe length can be from 8 inch to 100 inch.

MATERIALS:
Pipes and base: copper, brass, steel and aluminum with clear coating, brushed or polished. Painted in any color available.

DIMMER: available in driver. option.

LIGHT SOURCE: 1W 350ma Led, color temperature 2700K

POWER: 110V - 220V

MADE IN USA
DESIGNED BY KJARTAN OSKARSSON 2013/2014

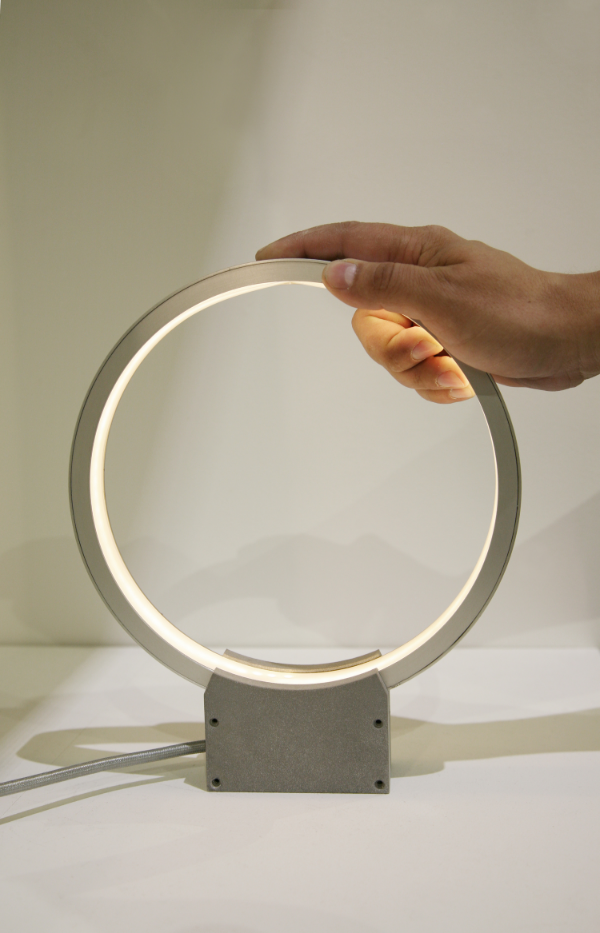

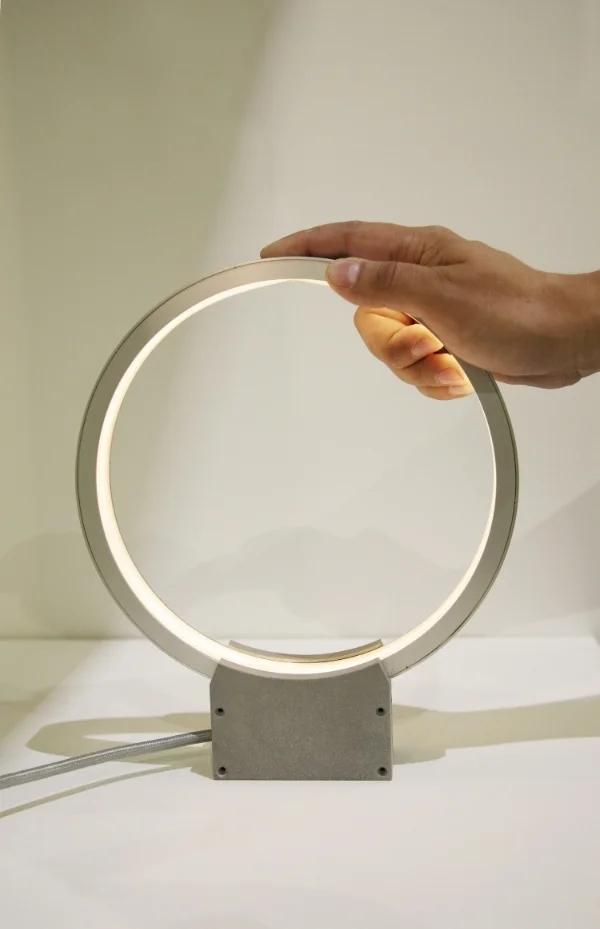

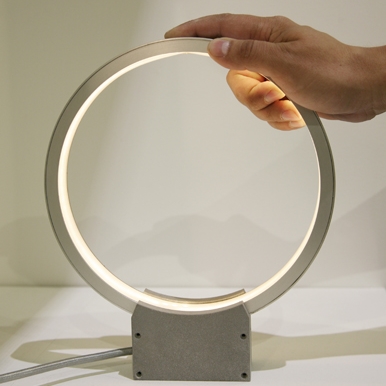

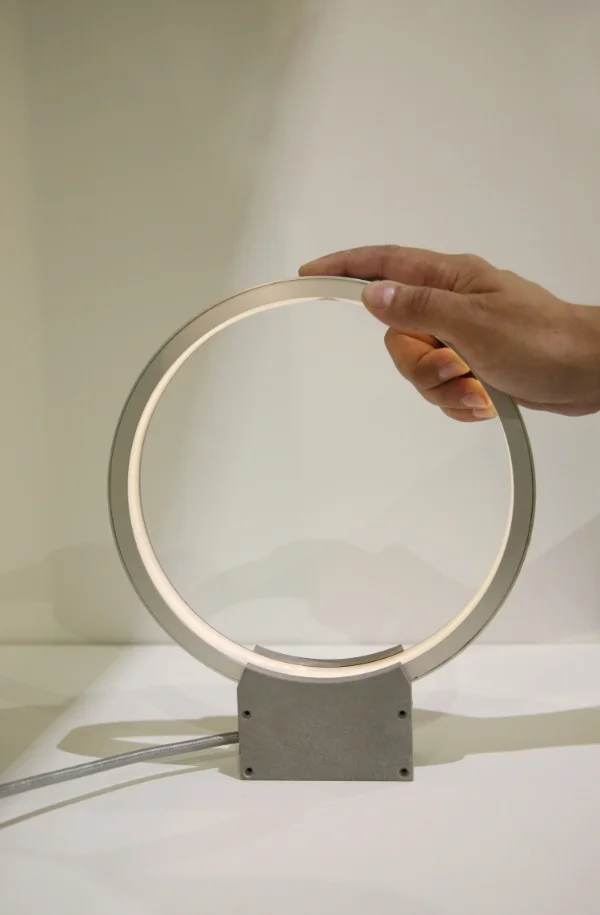

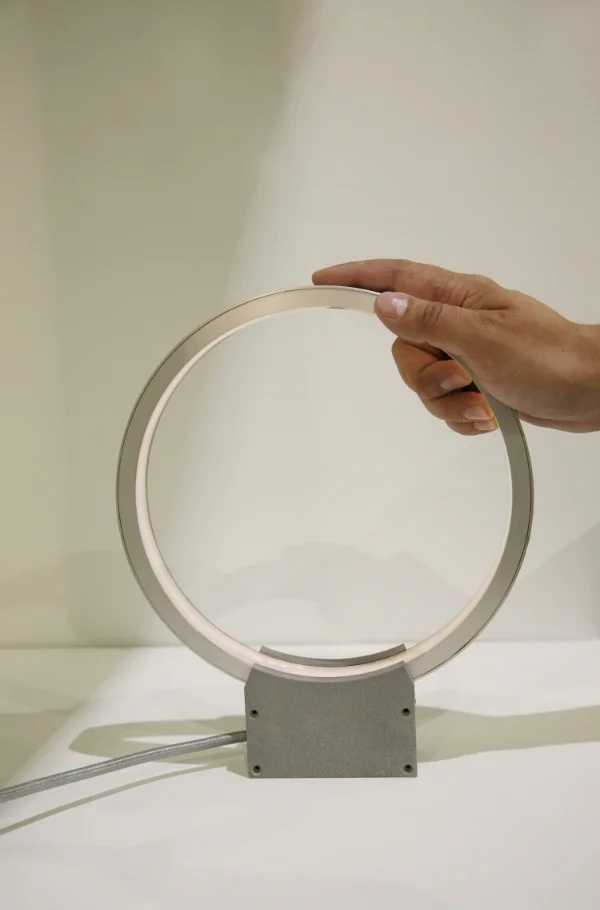

The Lightcircleis designed specifically to create a fun new link between the lamp and its user. As the Lightcircleis a table lamp or work light I felt it was important to allow the user to adjust the amount of light in a simple manner. To increase the level of intrigue and involvement for the user I decided to include no visible controls such as a dimmer or switch, but rather to integrate them into the lamp itself.

This means that in order to adjust the lamp one must touch it and move it back and forth, to increase or reduce the amount of light, or to turn it on and off. This simple motion creates an interesting link between the user and the lamp while at the same time creating a new experience for the user that is different from preconceived ideas about how dimmers work or how lights should be controlled.

The lamp is built as a circle or a wheel attached to a base. As the idea is that the lamp will be touched a lot the choice of materials reflects this and is intended to ensure a long lifetime for the product. The circle is made of anodized aluminum. The anodized surface strengthens the aluminum and reduced fingerprints.

The light source is a LED tape and is hidden within the circle, with the light directed towards the inside of the lamp. Opal-plastic is used to subdue and conceal the light source. The circle has a diameter of 22cm with a base of cement to give the lamp added weight. The dimmer electronics are in the bottom of the lamp and are linked to the aluminum ring via gears that turn the dimmer electronics when the ring is rotated.

Materials: Aluminum and plastic.
Dimensions: Q 9 inc., height 11 inc., width 1,1 inc.
Light source: LED 12V 30W
Dimmer: 12V 0-100% 110v / 220v
